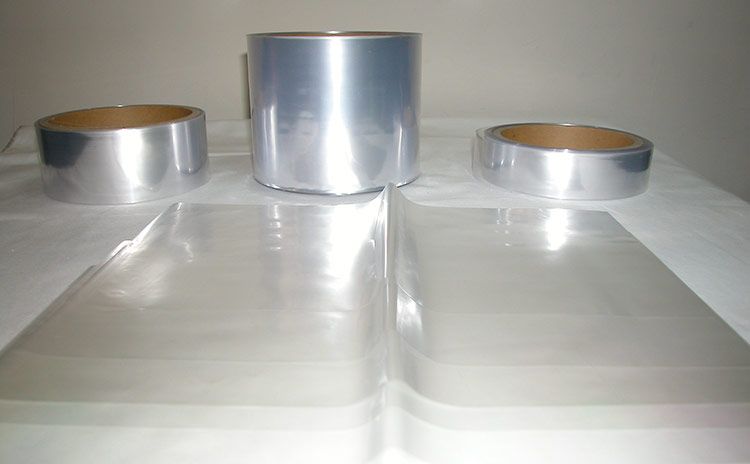

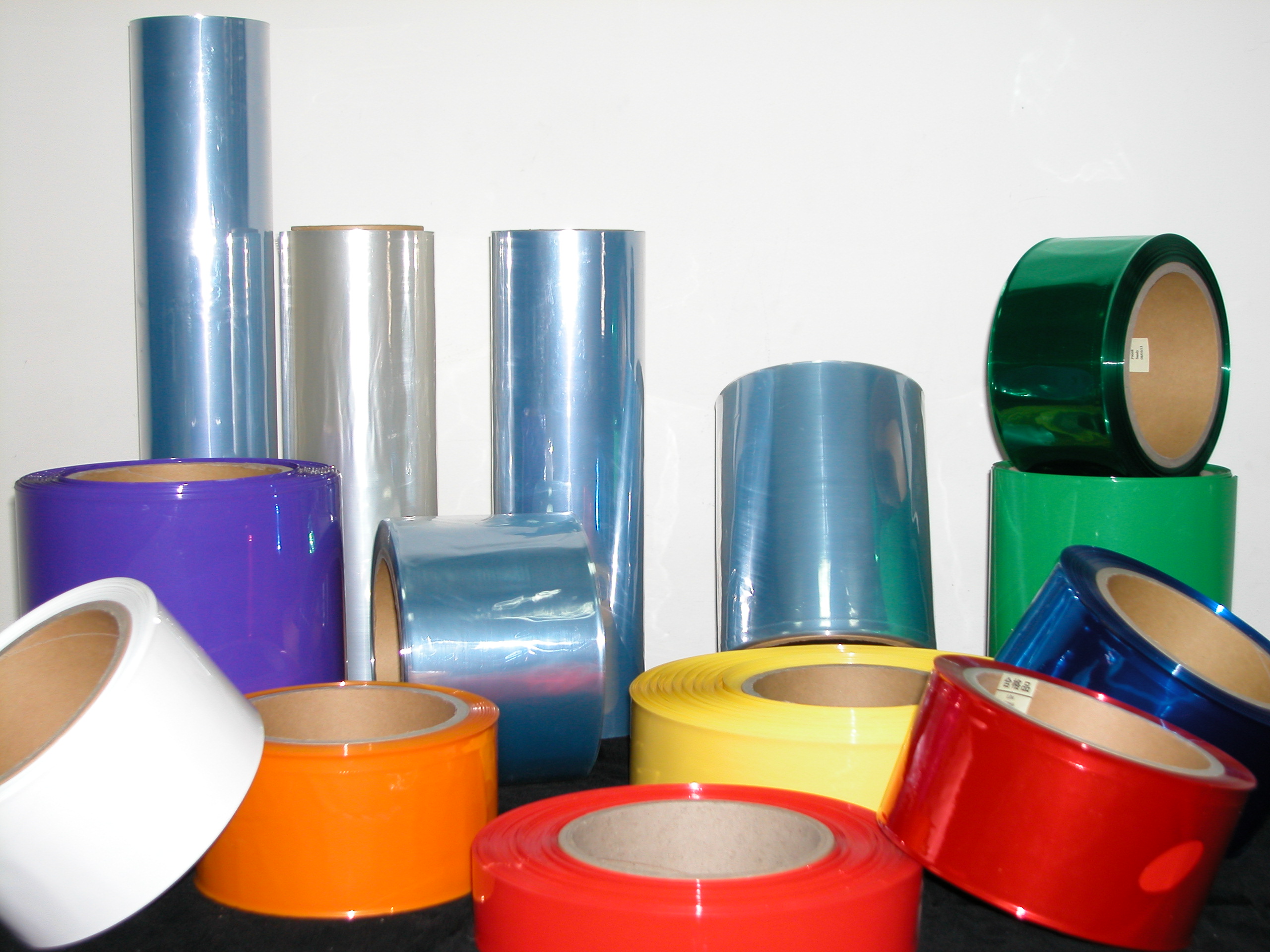

Shrink Tubing Roll Stock:
Heat shrink seamless tubing is plastic film that is blow extruded in a seamless tube, similar to a sleeve but without the seam. Heat shrink seamless tubing is available in standard clear, or in a variety of colors with or without print. Seamless tubing try tolerance and performance standards. Custom formulations are available, designed specifically to your machinery requirements. Perforation and Ultra Violet, additives are also available, and we can match PMS color.
| MATERIAL | THICKNESS | WIDTH | SHRINK RATIO | TOLERANCE |
|---|---|---|---|---|
| PVC | 0.025 ~ 0.15mm | 5 ~ 1000mm | MD 8 ~ 12% X TD 40 ~ 50% | Thickness: ±0.005mm / LFW -0; up 100mm +1% |
| PET | 0.04 ~ 0.07mm | 30 ~ 500mm | MD 8 ~ 12% X TD 40 ~ 50% | Thickness: ±0.005mm / LFW -0; up 100mm +1% |
● Special thickness, width, or shrink ratio by request.
● PVC shrink seamless tubing roll stocks is available by using in general use or electronics application, and also available in clear or color extruded tube rolls.
● PET shrink seamless tubing roll stocks is also available in clear or color extruded tube roll.
● Perforation, Ultra Violet, and additives are also available.
